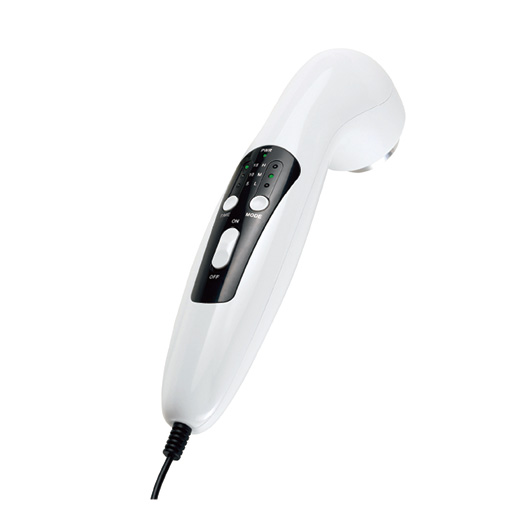

The UT1032 is a clinical grade therapeutic ultrasound device that helps with effective pain relief. The pulsed sound waves travel deep into the tissue and induce vasodilation, which helps increase blood flow to the treated area and is found to help relieve pain and reduce muscle spasms. It comes uniquely equipped with a sound head pre-warming feature on an ergonomically designed sound head for increased patient comfort. Before starting therapy the sound head preheats so that it's more comfortable and warm. Once therapy is engaged, the pre-warming feature turns off to allow for the most effective treatment.
? Ergonomically design and easy to use
? Effectively relieve aches and pains and aid healing injuries & strains
? Three output intensities and three treatment time selections
? Load detection and lock function for safety use
? Operates in continuous mode (100% Duty Cycle).
? Big treatment area
? Preheat function for increased patient comfort
? Watertight for use in underwater therapy (Ultrasound head only - IPX7)
| Product designation | Portable Ultrasound |
| Ultrasound Modulation/Acoustic Frequency | 1.0 MHz ±10% |
| Output Power | (L) 0.32W ± 20% (M) 3.20W ± 20% (H) 6.40W ± 20% |
| Pulse Repetition Rate | 100Hz ± 10% |
| Modulation Duty Cycle (Duty Factor) | (L) 5%, (M) 50%, (H) 100% |
| Effective Radiating Area (ERA) | 4.0 cm2 ± 20% |
| Treatment Time | 5, 10, or 15 minutes |
| Preheat Time | 3-5 minutes |
| Wave Form | Pulsed or Continuous |
| Beam Type | Collimated |
